Designed for daily use and intended for every student to own, the EE board combines everything needed to design and test circuits in a single all-in-one device. No more once-a-week labs! With an EE board, every student can complete designs in virtually any setting - any classroom can be a complete, 24-hour design studio. Students (and hobbyists) will have the capability of completing projects at home or abroad as well!
Built around a large solderless breadboard, the EE board includes various instruments that provide all of the tools necessary to design, implement, and analyze any circuit. All of these instruments can be connected directly to circuits built on right on the EE board’s breadboard using jumper wires (included with the board). The EE board is powered by the free, PC-based WaveForms™ software. WaveForms makes it easy to acquire, store, analyze, produce and reuse analog/digital signals. A high-speed USB2 connection ensures all of the EE board instruments respond in near real-time. For more information or to download WaveForms, visit our website. You can also read more about the functionality of WaveForms at our blog.

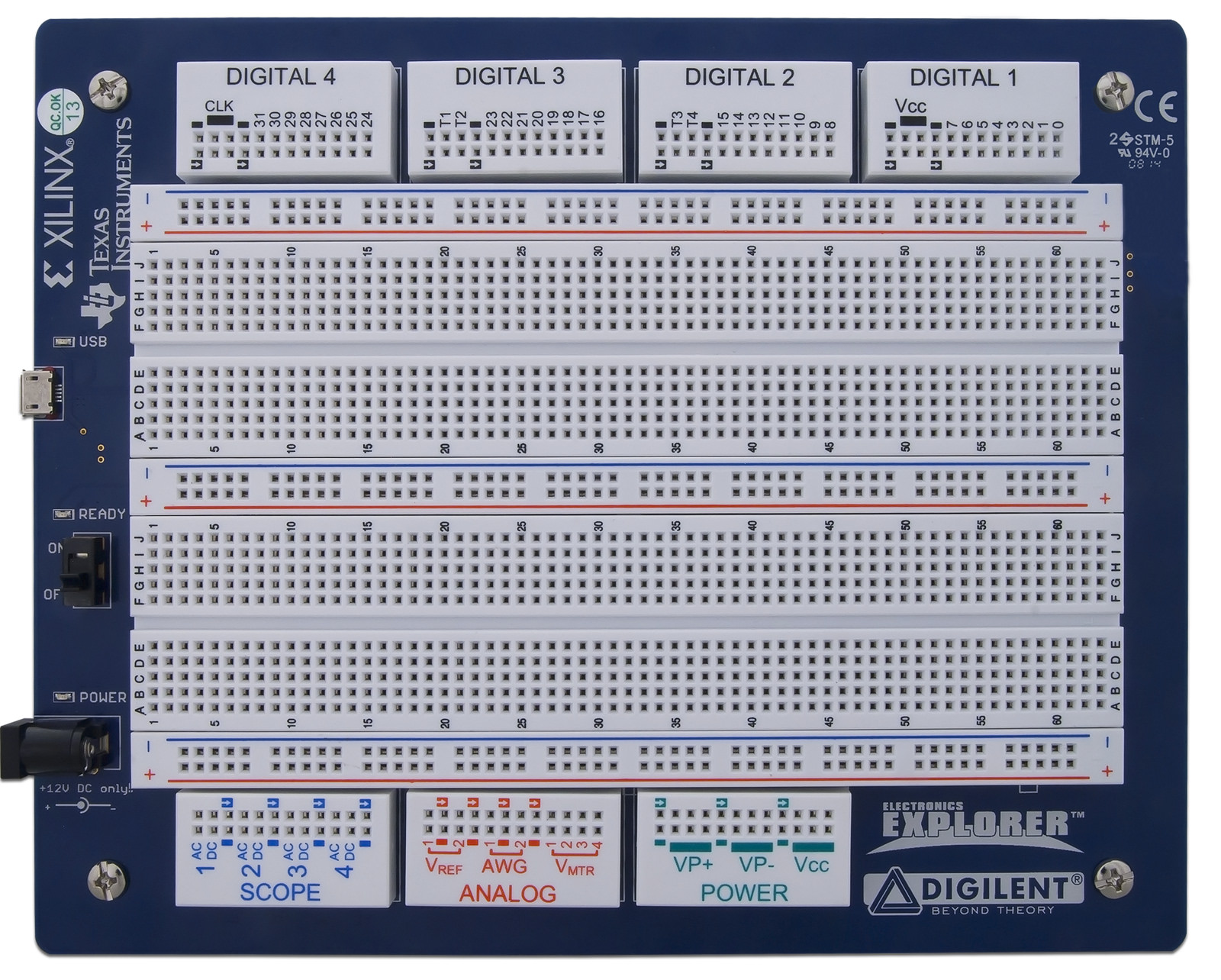

Electronics Explorer Board Top View

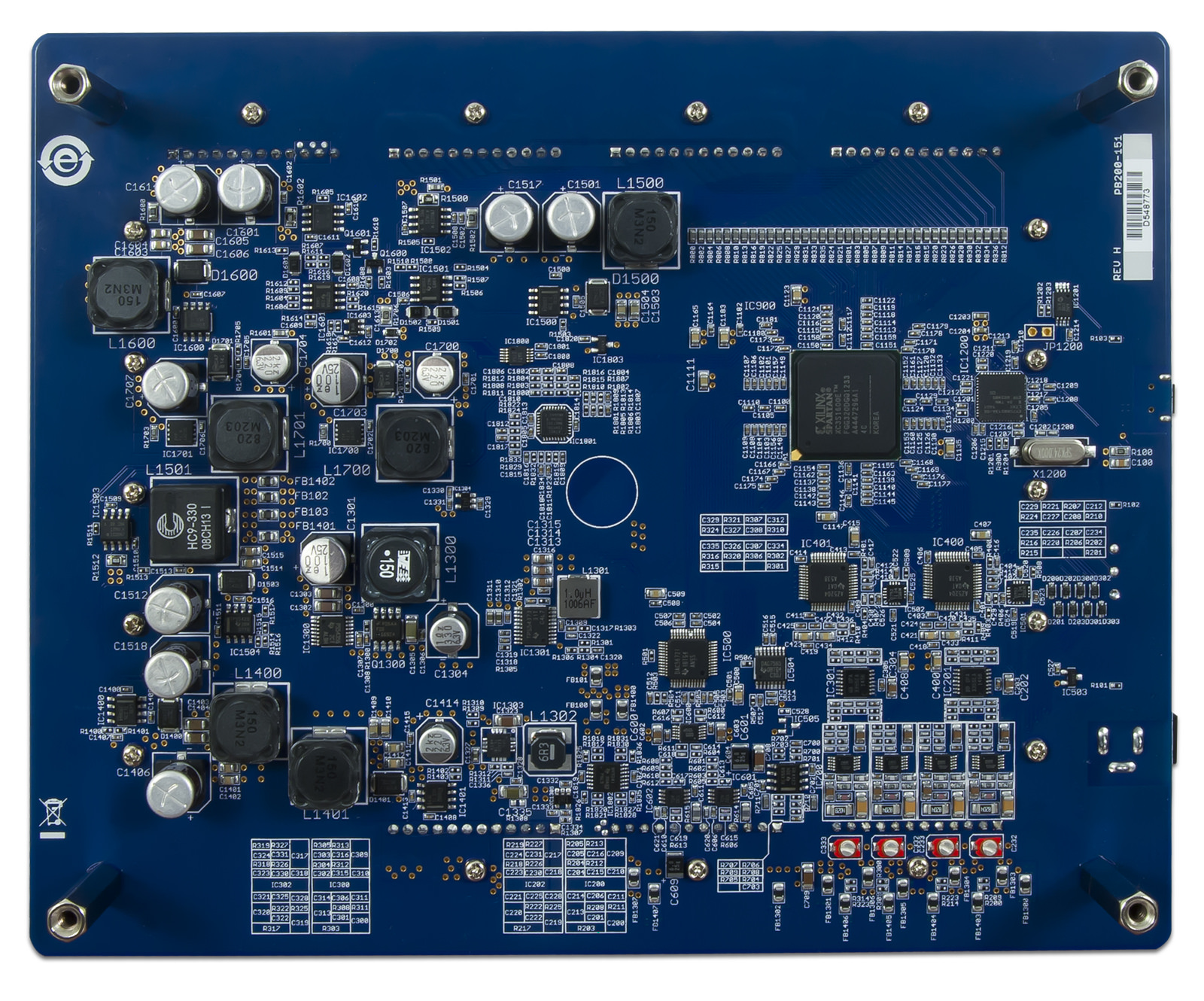

Electronics Explorer Bottom View
• Large mounted breadboard for design implementation • High-speed USB2 interface for fast data transfer • 4 external trigger sources • External 12V/2A DC power supply • 2 programmable reference votlages • Dimensions: 7.8” x 6.3” (198mm x 160mm)
The EE Board also includes the following instruments:
• 4-channel, 40MSa Oscilloscope • 4-channel Voltmeter • 2-channel Arbitrary Waveform Generator • Triple-output Power Supply (two programmable) • 32-channel Logic Analyzer • 32-channel Digital Pattern Generator • Discrete Static Digital I/O’s (buttons, switches, LEDs, etc.) • The datasheet contains more information about each of these instruments.
